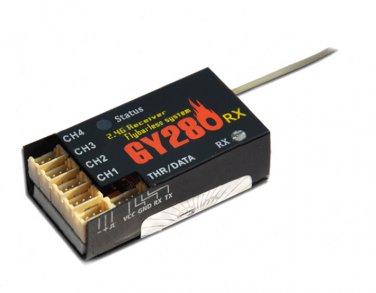

FlybarlessSystemGY280RXVBARReceiverwith3-AxisGyro+DSM2+SettingCard+BoostModuleDescription:GY280RX is the integration of the Vbar (PRO5.3.4 firmware), and integrated electronic control system for DSM2 receivers. Inherited the excellent spin optimizations effects of VBAR silky feel, and the stable receive systems of DSM2. It support CCPM120 and other types swashplate (which can be any custom). Adopt the the original design of the lightest most compact, it is the best choice for upgrades small flybarless system aircraft. Tested on Walkera V120D02S/BLADE130X models, and it had a really good performance.Dimensions: length 35MM* width 18.5MM* height 11MMWeight: About 5 gramsReceiving distance: more than 150 mWorking voltage: 4.0-6.5VServo connector: 1.25 mini JST connector (compatible with the Walkera servos)The neat layout will minimize the weight and volumeGY280RX support direct bind with DSM2/DSMX transmitter, as follows:1, Turn off the transmitter, put the ESC in THR port to supply power for the GY280RX;2, Wait approximately 12 seconds or more, "Status" lights flash once about one second, flash more than 12 times;3, Pull the ESC battery, back to GY280RX, then see "RX" light flashes, the receiver start on the frequency mode;4, Press and hold the BIND button to turn on the transmitter (View the specified operation on the transmitter instruction on frequency), the "RX" light received a signal into a slow flash until the "RX" light stay lit, then loose the BIND button of the transmitter. Bind successfully!5, After binding, you need to give GY280RX the power to make it work properly;6, After the first successful bind, you need turn on the transmitter at first in the future to give GY280RX power, wait until gyro self-test completed and "Status" light stay lit into normal flight. Do not move the aircraft during the gyro self-test, nor in your hand or placed on the vibrating place.V120D02S does not need to change the original dynamical system now, use 1S battery with the booster module directly can be work with the GY280RX!Experience the powerful Vbar!Specification:- Dimensions: length 35MM* width 18.5MM* height 11MM- Weight: About 5 grams- Receiving distance: more than 150 m- Working voltage: 4.0-6.5V- Servo connector: 1.25 mini JST connector (compatible with the Walkera servos)GY280RX support direct bind with DSM2/DSMX transmitter, as follows:1. Turn off the transmitter, put the ESC in THR port to supply power for the GY280RX;2. Wait approximately 12 seconds or more, "Status" lights flash once about one second, flash more than 12 times;3. Pull the ESC battery, back to GY280RX, then see "RX" light flashes, the receiver start on the frequency mode;4. Press and hold the BIND button to turn on the transmitter (View the specified operation on the transmitter instruction on frequency), the "RX" light received a signal into a slow flash until the "RX" light stay lit, then loose the BIND button of the transmitter. Bind successfully!5. After binding, you need to give GY280RX the power to make it work properly;6. After the first successful bind, you need turn on the transmitter at first in the future to give GY280RX power, wait until gyro self-test completed and "Status" light stay lit into normal flight. Do not move the aircraft during the gyro self-test, nor in your hand or placed on the vibrating place.V120D02S does not need to change the original dynamical system now, use 1S battery with the booster module directly can be work with the GY280RX!Package Included:1 x GY280RX VBAR1 x Setting Card1 x Boost Module evrika33 store
