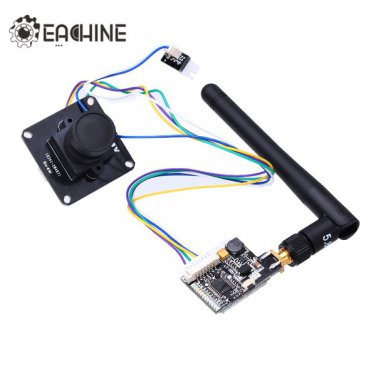

Eachine 700TVL 1/3 Cmos FPV 110 Degree Camera Module w/32CH Image TransmissionClick here for Review of similarEachine 700TVL 1/3 Cmos FPV 148 Degree Camera Module w/32CH Image Transmission:(Click for 148 Degree Camera:Eachine 700TVL 1/3 Cmos FPV 148 Degree Camera w/32CH Transmission)This Eachine 700TVL 1/3 Cmos FPV 110 Degree Camera supports free switching between NTSC and PAL.In other words, you will receive the same camera no matter which system you will receive (Pal or NTSC) .And please note that you need to turn off the electricity before switching or it may be failedDescription:Brand Name: EachineItem NO.:F01Item Name: 700TVL 110degree Camera module with transmitterSpecification of Camera:Lens: 2.6mm IR coatedFOV: 27°diagonal 110°horizontal (ideal for fixed camera)Power Supply: 3.6-5.5V(powered by image transmission)Type: PAL / NTSC(free switch)Current:
[email protected]: 1/3” CMOSResolution: 700TVLOperating temperature: -20° C - 70° CCamera Size: 32 X 32 X 23.5mmLens Size(Length x Diameter): 15.3mm X 14mmWeight: 12gUsage:Compatible with general 5.8G transmitterSpecification of Image Transmission:Item NO.: LT200Modulation Mode: FMSupported Video Format: NTSC/PALOutput Impedance: 50 OhmOutput Signal Strength: 23~24dBm.Output Power: 200mWOperating Channel: 32CHOperating Voltage: 7V - 24VOperating Current: 190mAOperating Temperature:-10~85Video Band Width: 0~8.0 MHzVideo Input Level:0.8~1.2 Vp-pVideo Input Impedance:75 OhmAudio Input Level:0.5~2.0 Vp-pAudio Input Impedance:10K OhmSound Carrier: 6.5MHzAntenna Connector: RP-SMA maleSize: 38mm x 22.5mm x 6mmWeight: 6g(without antenna)Can be powered with a 3S balancer plugTransmitter frequency: 5645-5945MHz with 200mW power outputTransmitting distance > ~1500m (open area)Note:This Eachine 700TVL 1/3 Cmos FPV 110 Degree Camera supports 11.1V and the 32CH Transmission supports 7V - 24V. After testing, both of them in 11.1V will be the best if used as a set.Frequency TableFrequency Band A58655845582558055785576557455725Frequency Band B57335752577157905809582858475866Frequency BandE57075685566556455885590559255945Frequency BandF57405760578058005820584058605880Feature:- With 1/3'' CMOS sensor- With lens cap,well protecting the lens- Performance rivals CCD. Nice quality low cost.- Evening low light performance as excellent as highlight during the day- Imaging parameters and the wide angle rigorous debugging for FPV- Special cable connected the camera to image transmission,very convenient and concise- Super lightweight,ultra-low power consumption,suitable for RC multicopter-Can be mounted on frame,compatible with most ofthe 250mm frame- Image settings have been FPV tuned through hours of flight testing to ensure great performance in challenging lighting conditions (no problem to fly in low afternoon sunlight).-Low power and light weight make this camera a perfect choice for smaller aircraft. Come with tiny 200mW 32ch FPV professional video transmitters.-Compatible with ImmersionRC Boscam, Foxtech and other generic brand FPV receivers within the same frequency range.RecommendedRelated Product: (Not included)5.8G 32CH receiver module5.8G 32CHLCD monitor250mm frame kitPackage Included:1x Eachine 700TVL camera1x 5.8G image transmission1x Antenna(2db)1x 5P Cable1x ManualNote:This Eachine 700TVL 1/3 Cmos FPV 110 Degree Camera supports free switching between NTSC and PAL.In other words, you will receive the same camera no matter which system you will receive (Pal or NTSC) .And please note that you need to turn off the electricity before switching or it may be failed.Customer review:I was impressed by the quality of this bundle especially by the camera offering a good light sensitivy and a clear and precize everything!!!!You can't really by wrong with this bundle. The VTX is warming a lot from 3S powering and IMHO can be seriously damaged if not correctly cooled correctly at least by a correct air flow. Emitted power are relatively constant for all channels (< than 5% of deviation)I would prefer to have a normal JST plug instead of this method to use a 3S lipo only via the balancer plug.PROS:+ Clean, clear and precize transmitted video+ Good camera with a large FOV, 700 TVL and good light sensitivity (around 0.01lux IMHO)+ Light bundle (under 32g everything included)+ Tiny 32CH 200 mW 5.8G VTX without interférences (like some TX5823)+ Unbeatable price evrika33 store
